LFQ-B Series Vertical Automatic Slitting & Rewinding Machine

0086-577-58910222
DESCRIPTION

Product ID:LFQ-B
Sort:Divide-pieces machine series
Name:LFQ-B Series Vertical Automatic Slitting & Rewinding Machine

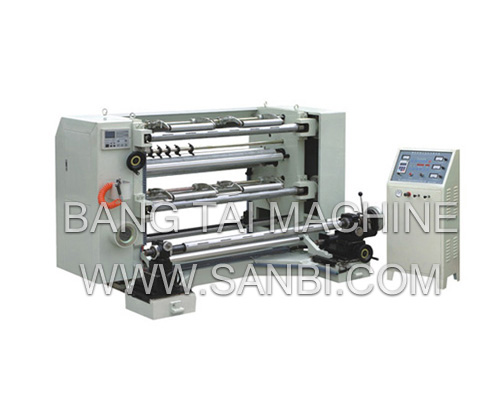

LFQ-B Series Vertical Automatic Slitting & Rewinding Machine
Application: This machine is suitable for slitting and rewinding such various
roll materials as BOPP, PET, CPP, CPE, PVC, aluminum foil and paper, etc. and
can cut edge, separate and cut material according to different requirements during production.


Performance and Features:
1. This machine is a kind of vertical slitting & rewinding machine
2. Independent master control panel, more flexible and even easier operation.
3. Automatic EPC for unwinding, photocell is suitable for tracking the edge and color of transparent material. 4. Air inflatable shaft for unwinding, automatic tension controller and magnetic powder brake for unwinding tension control
5. Double cam shaft for rewinding, Magnetic clutch control for rewinding tension control
6. Main motor with frequency converter for speed regulation
7. Equipped with rim charge conveying device.
8. Automatic meter counting device

Across membrane chart:



Type LFQ-700A(B) LFQ-1100A(B) LFQ-1300A(B)
Max.Width of Mother Roll 700mm 1100mm 1300mm
MAX.Diameter of Mother Roll Φ600mm Φ600mm Φ600mm
Width of Final Roll 30-600mm 30-600mm 30-600mm
Slitting and Rewinging Speed 5-160m/min 5-160m/min 5-160m/min
Tolerance of EPC <±0.5mm <±0.5mm <±0.5mm
Total Power 2.7kw 3.5kw 3.5kw
Weight of Machine 1200kg 1500kg 1800kg
Overall Dimension 2000*1110*1400mm 2400*1110*1400mm 2600*1110*1400mm
